Medical All-Glass Lens Separated LED OV9734 Sensor 1MP Endoscope Camera Module

Medical All-Glass Lens Separated LED OV9734 Sensor 1MP Endoscope Camera Module

  • Product Name
    3.9mm Diameter HD Endoscope Camera Module
  • Sensor
    OV9734
  • Focusing Range
    10-100mm
  • FOV(D*H*V)
    95° 85° 43.5
  • Focal Length
    1.08mm
  • F. NO
    4.0
  • Nom de marque
    SincereFirst
  • Warranty
    10 Years
  • Type
    LED Endoscope Camera Module with Shell
  • Place of Origin
    Guangdong , China
  • Nom de marque
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-C1019USB-D3.9-PRO-L200
  • Minimum Order Quantity
    5pcs
  • Prix
    negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C,Western Union,T/T,MoneyGram,Paypal and Others
  • Supply Ability
    350000 pcs / month

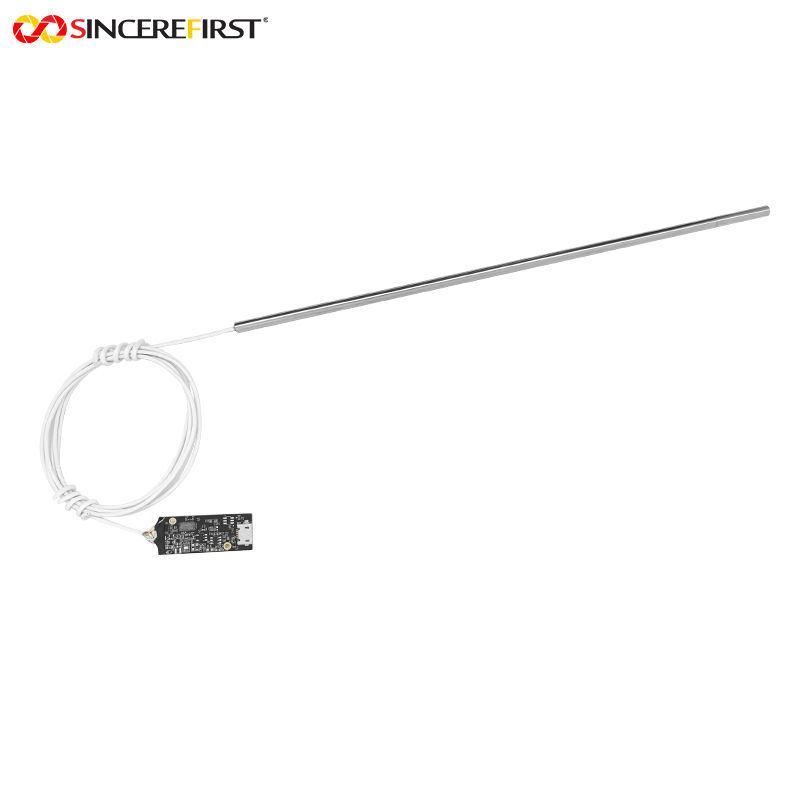

Medical All-Glass Lens Separated LED OV9734 Sensor 1MP Endoscope Camera Module

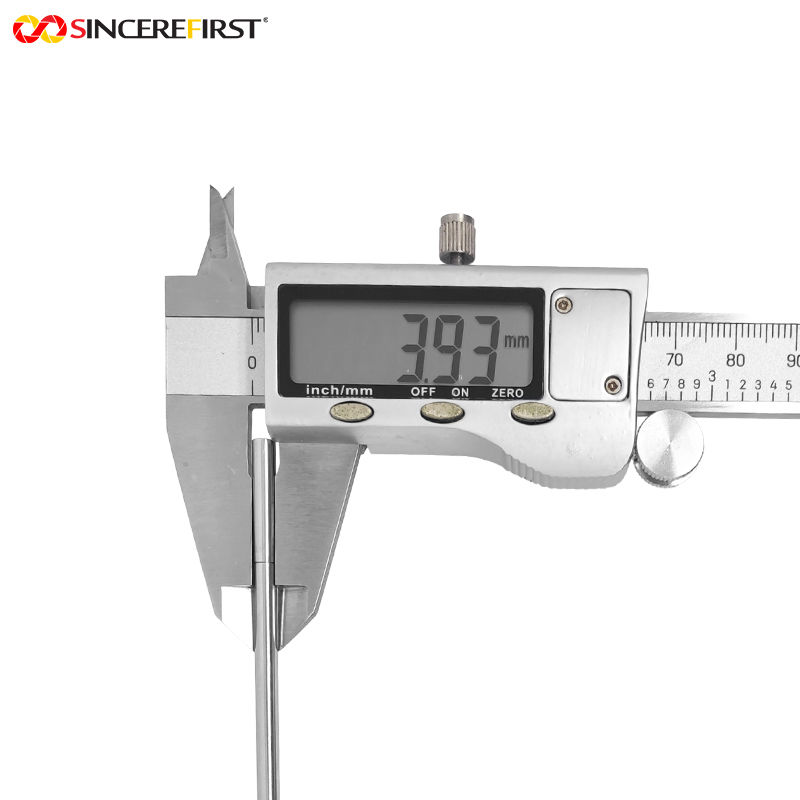

Medical All-Glass Lens Separated LED OV9734 Sensor 1MP Endoscope Camera Module

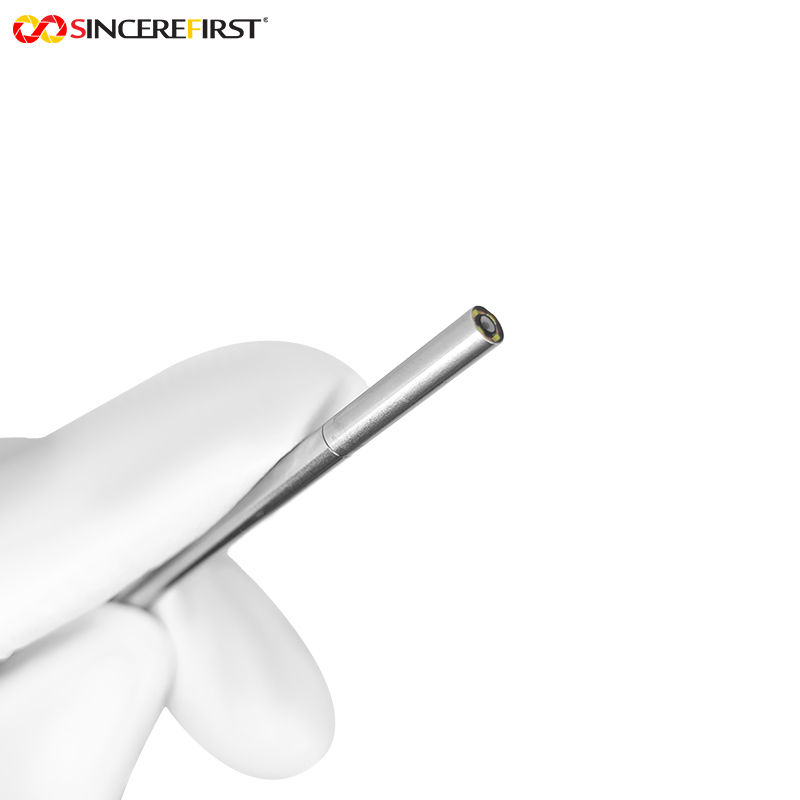

Medical All-Glass Lens Separated LED OV9734 Sensor 1MP Endoscope Camera Module 0

Product Description:

  • This is medical all-glass lens separated LED OV9734 sensor 1MP endoscope camera module, integrates a 1MP OmniVision OV9734 CMOS sensor within a 3.9mm-diameter steel sleeve. The precision-engineered glass lens assembly delivers superior optical clarity, with a fixed focal length of 1.08mm optimized for object distances of 10–100mm. Combined with an F4.0 aperture and ultra-wide 95° diagonal field of view (83° horizontal / 43.5° vertical), it achieves minimal distortion (<-10%) while maximizing coverage area. The 1/9-inch OV9734 sensor leverages 1.4μm×1.4μm PureCel® pixel technology to enhance low-light sensitivity and deliver 68.4dB dynamic range, enabling 1280×720 HD resolution at 30fps or VGA at higher framerates with low-noise performance. Its separated module design minimizes z-height to 3.9mm, incorporating four integrated LEDs for illumination and an IP67-rated steel enclosure for waterproof durability in harsh environments. Data transmission occurs via USB 2.0 interface, ensuring compatibility with medical and industrial visualization systems.

Features:

1. High-Definition Imaging: The large 1.4μm pixels combined with the high dynamic range of the OV9734 sensor significantly enhance low-light sensitivity, supporting the output of high-definition images.
2. All-Glass Lens: Eliminates thermal deformation and aging issues associated with resin lenses, ensuring long-term imaging stability.
3. Ultra-Wide Angle with Low Distortion: A 95° diagonal field of view paired with distortion control of less than -10% enables wide-area detection without edge distortion.

4. IP67 Protection: A waterproof and dustproof steel housing integrated with four embedded LEDs adapts to harsh environments such as humidity and oil contamination.





Technical Parameters:

Product Name

720P HD 1MP Endoscope Camera Module

Sensor

OV9734

Focus Range 10-100mm

FOV(D*H*V)

95° 85° 43.5°

Distortion

≤-10%

Format

YUV&MJPG

Features

Separate-Type Endoscope Camera Module

Interface

 USB2.0 Interface

Warranty

10 Years

F. NO

2.8


Applications:

Underwater Equipment Inspection: The IP67 protection rating allows operation at a water depth of 30 meters. The four LEDs provide uniform illumination in turbid waters, used for ship hull maintenance or underwater cable inspection.
Pipeline Inspection: The separated structure and USB direct connection support integration with robots, enabling real-time transmission of data on internal scaling or weld quality in drainage pipes and oil pipelines.
Minimally Invasive Surgical Navigation: The 3.9mm diameter and IP67 waterproof features are suitable for laparoscopic and arthroscopic surgeries. The all-glass lens withstands high-temperature and high-pressure sterilization. The 720p@30fps HD imaging assists doctors in identifying microstructures of tissues.

Medical All-Glass Lens Separated LED OV9734 Sensor 1MP Endoscope Camera Module 1

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.

4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
